Ventilated facades

Protection and comfort

Ventilated façades are used to protect walls from the weather, improving the comfort of the home.

Due to its 2 cm thickness, a porcelain stoneware X2 is a perfect solution for ventilated facades with hidden anchors’ system. Unlike other materials which are also used for ventilated facades, technical characteristics of porcelain stoneware ensure its
longevity and resistance to weather conditions. It does not change its colour or characteristics subject to extreme temperatures, direct sunshine, rain and frost.

And as a result you get durable elegant external walls covered with incredibly beautiful X2 products. The possibility of coordinated projects comes to life also for important projects of public places, being able to combine flooring with ventilated facades realized with X2.

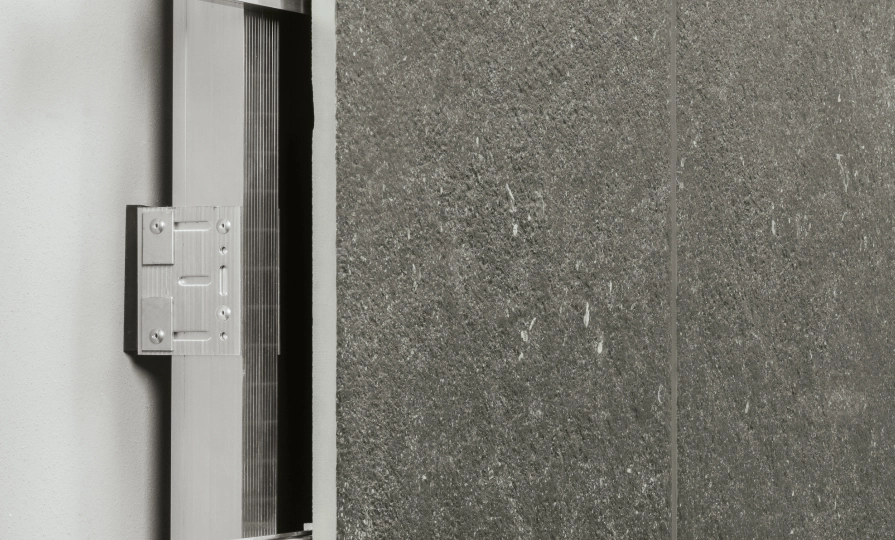

Hooking system Х2 BACK

The entire anchoring and support system of the slabs is invisible from the exterior.

The truncated cone-shaped dowels are inserted into the back of the slabs; these anchoring devices are placed near the sides so they can be slotted directly into the vertical profile.

Each individual slab can be mounted/removed independently and without the need for any particular processes to be carried out.

The structure is able to combat the action of the wind, and the thermal expansion of the various components is not an issue.

Italon X2 guarantees better hold of the anchoring dowels than traditional-thickness porcelain stoneware.

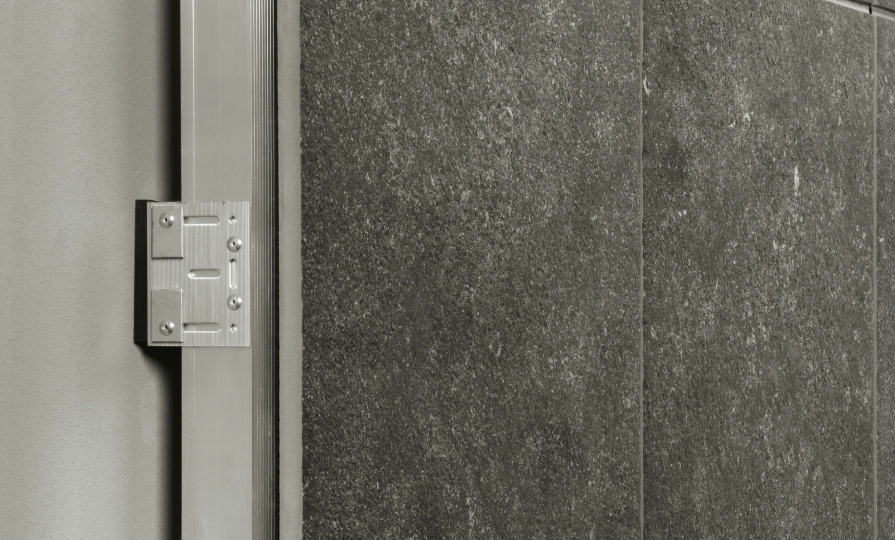

Hooking system Х2 EDGE

The slabs are supported by hooks inserted into the incisions previously made on the side edges, and slotted into the grooves of the profiles.

The structure is able to combat the action of the wind, and the thermal expansion of the various components is not an issue. This extremely versatile system is not only attractive and functional, but can also be assembled quickly, thanks to the small number of mechanical parts.

For this type of application, the thickness of Italon X2 is essential, because compared to natural stone, it offers the same appearance while reducing the overall weight of the structure.

Other installation systems

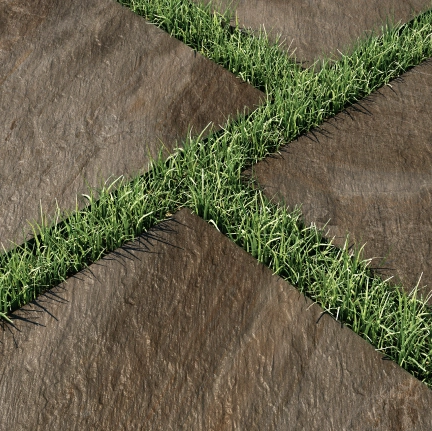

X2 tiles can be installed dry on a grassy substrate to create high performance walkways and outdoor paving.

Discover an installation on grass

A glued installation on a sub-floor in combination with the X2 surfaces creates stable and resistant flooring in areas that require high technical performance

Discover an installation on sub-floor

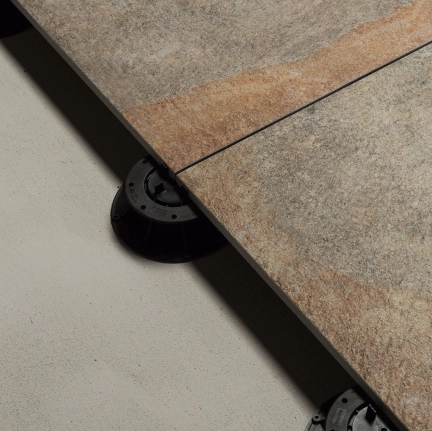

A raised installation is the ideal solution for businesses that wish to pave an outdoor space.

Discover a raised installation

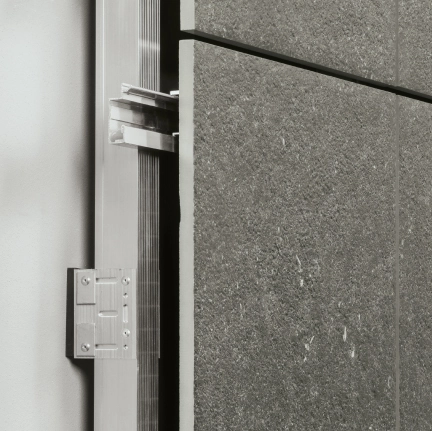

Ventilated façades are used to protect walls from the weather, improving the comfort of the home.

Discover a ventilated facades' installation

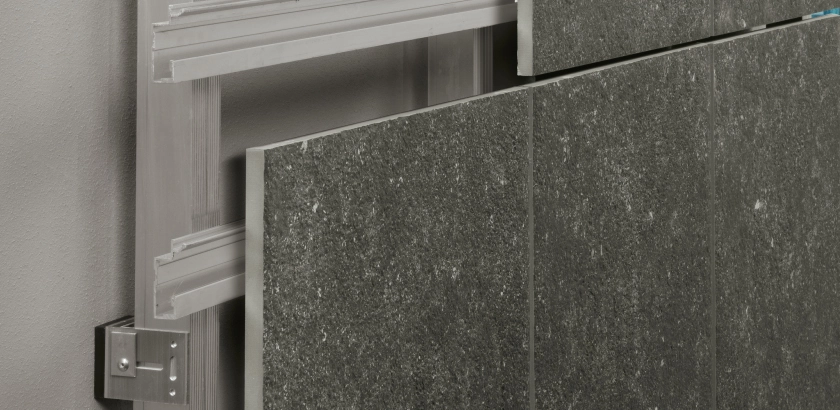

More information about ventilated facades

X2 tiles are perfect for this type of application, even on existing walls. A cushion of air protects the wall from temperature changes and offers great benefits in terms of energy savings.

DOWNLOAD PDF

Trim pieces Italon X2

Having a great material for your floors may be not enough when you have realize your ideas to reality. For this reason Italon X2 offers you a wide range of special products for the design of public and residential spaces, swimming pools and green areas.
Download a PDF of trim pieces that complete Italon X2.

PDF TRIM PIECES
